【Description】

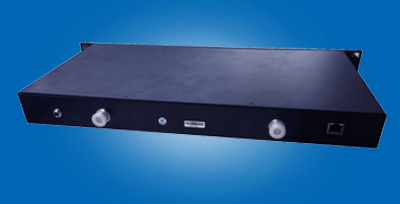

GNSS-M1 is our latest rack-mounted single stage of the low noise amplifier. Cover GPS, Galileo, and GLONASS,Beidou 2 frequencies etc. The device features 35dB gain and a noise figure less than 3dB. Since the product consumes less than 20mA, the device can be placed in line with the receiver antenna and can be powered by the GPS receiver's antenna voltage output.

【Technical Parameters】

• GPS Signal Indoor, Timing, Survey, Wireless Communication etc.
• Gain : 0～35dB, step adjustable .
• Response For

*GPS:L1,L2,L2C,L5;

*Glonass:G1,G2;

*Galileo:L1,E1,E2,E5(E5a,E5b),E6;

*Beidou2:B1,B2,B3;

*IRNSS L1,L5;

*OmniStar

• Pass DC

【Specifications 】

Electrical Specifications, Operating Temperature -40 to 85°c
